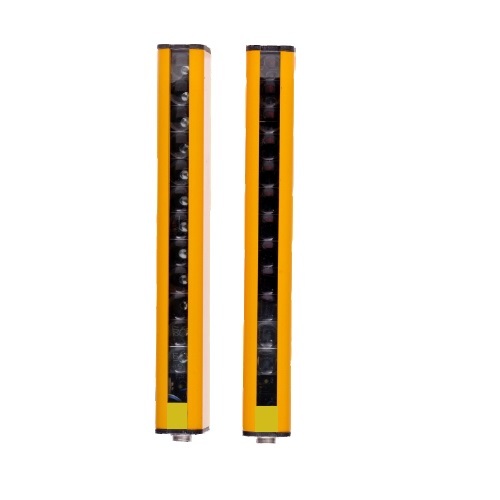

Safety Light Curtain Parallel Beam GSL-1230 Greatselec

Get a Price/Quote

Safety Light Curtain Parallel Beam GSL-1230 Greatselec Specification

Product Type
Safety Light Curtain Parallel Beam

Material
Aluminum Alloy, ABS

Tape Type
Parallel Beam Type

Gender
Unisex

Finishing
Powder Coated

Color
Yellow and Black

Size
300 mm (effective protection height)

Weight
Approx. 900 g

Connection Type
Cable

Operating Voltage
12-24V DC

Operating Temperature
-10C to +55C

Detection Capability
30 mm

Response Time
15 ms

Output Type
NPN/PNP, Relay available

Application
Industrial machinery safety, automation, press machines

Protection Distance
Up to 3 meters

Enclosure Rating
IP65

Model
GSL-1230

Number of Beams
12 Beams

Safety Light Curtain Parallel Beam GSL-1230 Greatselec Trade Information

Main Domestic Market
All India

About Safety Light Curtain Parallel Beam GSL-1230 Greatselec

SPECIFICATIONS:-

Power 12-24 volts DC
Supply protection Reverse polarity protected
output PNP or NPN/ NC
Output indications Through LEDs
Channel indication Led indication for each channel
Response time On to off:10-15 m sec.off to on:50-100 m sec.
No of beams 6,8,10,12,16,18,24,30,36
Beam by pass Provided in all model
Protected height 100mm-1500mm
Pitch offered 20, 30,40, 50, 90mm
Adjustable Range Up to 3 meters
(Higher range up to 5,10,15 mtr. available)
Standard Cable length 5 meters for emitter, 3 meters for receiver
Operating Temperature Up to 55 Degrees centigrade
Cross Section 50X36 mm

MODEL NO	OVERALL HEIGHT(MM)	PROTECTED HEIGHT(MM)	NO OF BEAM	PITCH
GSL-0620	180	100	06	20
GSL-1220	300	220	12	20
GSL-1820	420	340	18	20
GSL-2420	540	460	24	20
GSL-3020	660	580	30	20
GSL-3620	780	700	36	20
GSL-0630	250	150	06	30
GSL-1230	430	330	12	30
GSL-1830	610	510	18	30
GSL-2430	790	690	24	30
GSL-3030	970	870	30	30
GSL-3630	1150	1050	36	30
GSL-0640	300	200	06	40
GSL-1240	540	440	12	40
GSL-1840	780	680	18	40
GSL-2440	1020	920	24	40
GSL-3040	1260	1160	30	40
GSL-3640	1500	1400	36	40
GSL-0830	295	210	08	30
GSL-0840	370	280	08	40
GSL-1030	368	270	10	30
GSL-1040	455	360	10	40
GSL-1630	535	450	16	30
GSL-1640	690	600	16	40
GSL-0650	350	250	06	50
GSL-1250	650	550	12	50
GSL-1650	840	750	16	50
GSL-1850	950	850	18	50
GSL-2450	1250	1150	24	50
GSL-3050	1550	1450	30	50
GSL-3650	1850	1750	36	50
GSL-1690	1440	1350	16	90

Robust and Versatile Safety Solution

The GSL-1230 Safety Light Curtain is designed for demanding industrial settings, providing robust protection against accidental entry into hazardous zones. Its parallel beam configuration covers critical safety applications, offering precise detection and quick response. This device suits various roles, including dealer, distributor, exporter, importer, manufacturer, retailer, and service provider in India, ensuring comprehensive safety compliance across industries.

Advanced Features for Seamless Operation

Equipped with 12 beams and a 30 mm detection capability, the GSL-1230 seamlessly integrates with automation systems. Its output types-NPN/PNP and relay-offer flexible connectivity. The IP65-rated enclosure protects against dust and moisture, making it suitable for press machines and automated manufacturing. Operating reliably between -10C to +55C, it assures consistent safety in diverse conditions.

FAQ's of Safety Light Curtain Parallel Beam GSL-1230 Greatselec:

Q: How does the GSL-1230 Safety Light Curtain enhance industrial safety?

A: The GSL-1230 uses 12 parallel beams to detect intrusions into hazardous machine areas. Its swift response time (15 ms) immediately triggers outputs, ensuring that industrial machinery can halt operation and prevent accidents, thereby elevating workplace safety.

Q: What is the recommended installation process for the GSL-1230 Safety Light Curtain?

A: Mount the device using provided hardware at the perimeter of the hazardous area, ensuring alignment of the beams across the protected zone. Connect the curtain to your control system via the cable connection, and configure the output type (NPN/PNP or relay) to match your system requirements.

Q: When should the GSL-1230 be used in industrial automation?

A: The GSL-1230 is ideal during machine operation where personnel risk entering hazardous zones, such as with press machines, assembly lines, and automated equipment. It should be used whenever safeguarding access points is necessary to comply with safety standards.

Q: Where can the GSL-1230 Safety Light Curtain be installed for optimal protection?

A: Install the light curtain along machine boundaries or entrance points in areas requiring restricted access. Its protection distance of up to 3 meters and 30 mm detection capability allow it to secure a broad range of industrial applications.

Q: What are the benefits of choosing a powder-coated, IP65-rated enclosure for light curtains?

A: A powder-coated, IP65-rated enclosure ensures the device is highly resistant to environmental hazards such as dust, moisture, and mechanical impact. This increases durability and reliability, minimizing maintenance and downtime in harsh industrial conditions.

Q: How does the GSL-1230 accommodate different automation systems?

A: The curtain's NPN/PNP output types and relay availability provide flexible integration with varied industrial control systems, simplifying installation and improving compatibility across multiple machinery platforms.
